Impact Vibrator has its piston malletting continuously at one end while it is cushioned at the other. Since impact has high energy release rate, it is very effective in dislodging stubborn material build ups. Impact produces considerable noise, but the vibrator is run in short bursts and used for remote & open air installations. This type is ideal at places where traditionally bars and mallets have been used.



Model Performance at 4 Bar Overall Dimensions in mm
Impact Force
Nts.
Freque.
CPM
Air CONUM.
LPM

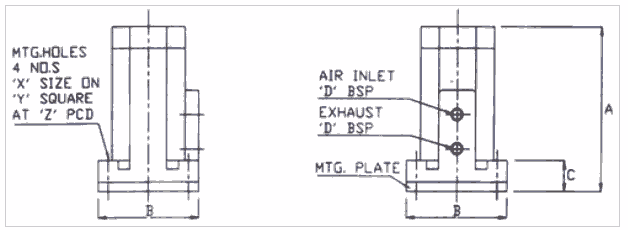

A B C D X Y Z
PVCI-21 3450 5000 175 89 55 16.5 1/8" M8 40 56.5
PVCI-22 7000 4700 280 110 68 20.5 1/4" M10 50 70.9
PVCI-23 13150 3700 410 139 82 25.6 1/4" M12 60 84.9
PVCI-24 20500 2800 535 172 110 30.6 3/8" M16 75 107.5
PVCI-25 32200 2050 660 216 135 39.5 3/8" M20 95 134.4
PVCI-26 49900 1500 795 275 172 80 1/2" M24 122 172.5
PVCI-27 68044 1060 925 372 210 54 3/4" M32 152 215
